Dual Phaser

The Dual Phaser consists of two independent voltage controlled allpass filters. The configuration of the filters themselves I got from a design by Jorgen Belfors.

Features

• Two independent four pole allpass filters with CV, Variable CV, and Resonance
• Allpass Filters can be hooked in series or parallel
• Mixed output of both stages
• A single set of control voltages can be used to control both Phaser stages (COMMON mode) or each stage can be controlled on its own (INDEPENDENT mode)

Status

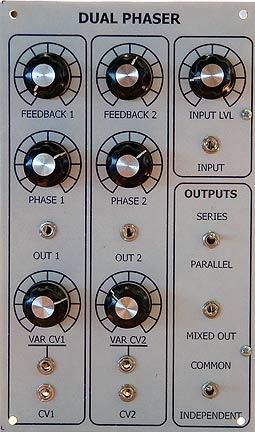

PCB built and stuffed PCB tested and working Mounted to panel

Dual Phaser schematic

Sound samples

• S/H with squarewave input, filters in parallel. Square LFO on stage 1, sweeping stage 2 manually.
• Saw input, filters in parallel, tri LFO in VAR CV1 and ADSR in VAR CV2. Mixed with a triangle wave externally.
• Formant sound. Reminds me of Jim Patchell's Vocal Filter. Saw in, filters in series, common mode with ADSR in VAR CV.
