SSM2033 VCO

VCO based on SSM2033 chip.

• SSM2033 has internal heater temperature compensation
• Saw, Tri, Sine, Pulse, Square (TTL) waveforms
• Coarse and Fine frequency adjust
• Selectable Hard/Soft Sync input
• FM input with level control
• PWM input, initial PW, and internal PWM LFO with rate control
• Two 1v/octave control voltage inputs

Status

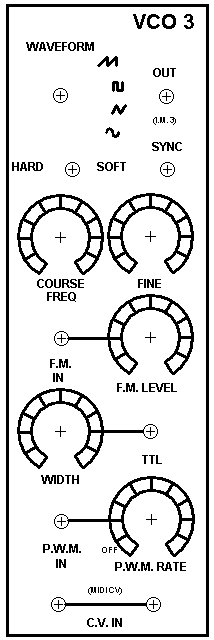

PCB Etched and stuffed PCB tested and working Wired to front panel and tested!

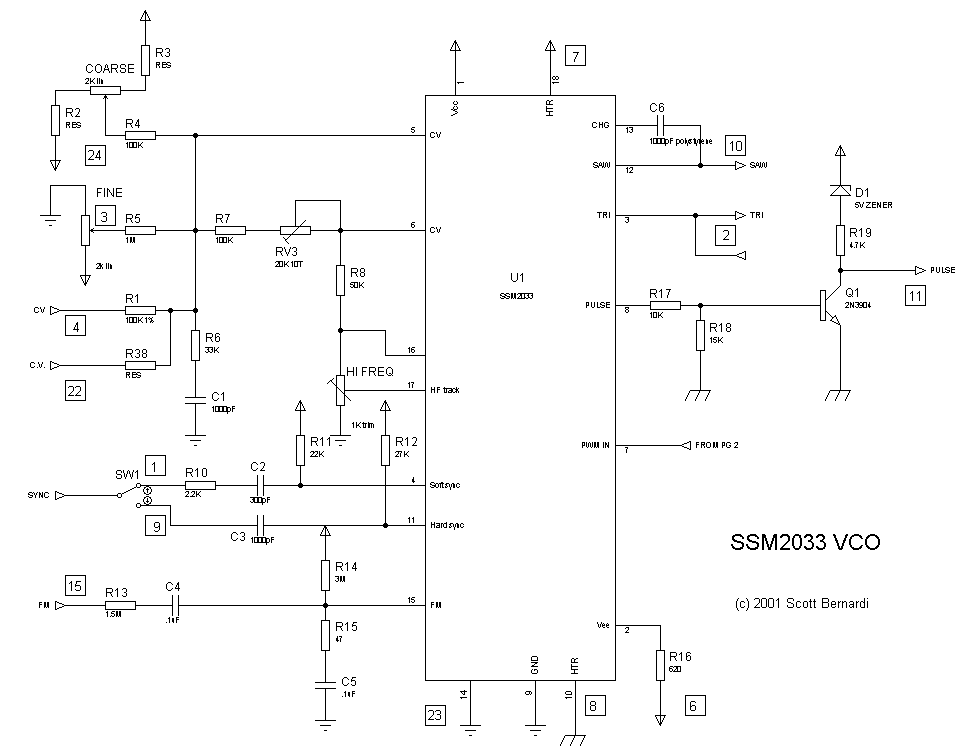

SSM2033 VCO schematic
SSM2033 VCO Bill of Materials

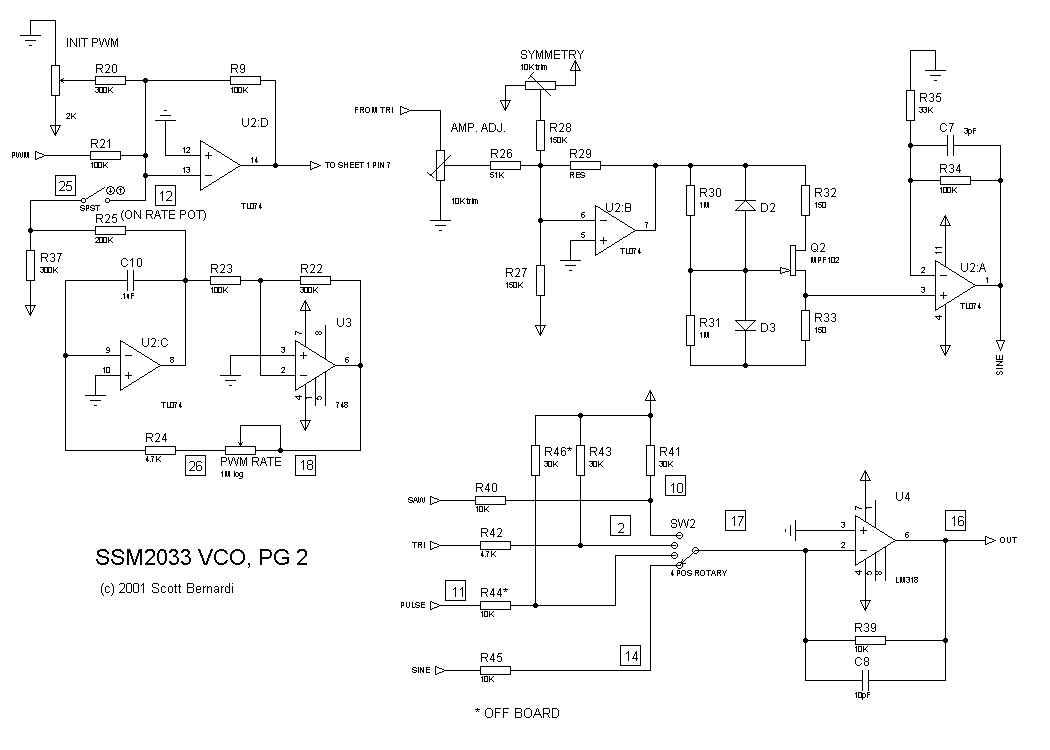

Waveshaper & PWM schematic

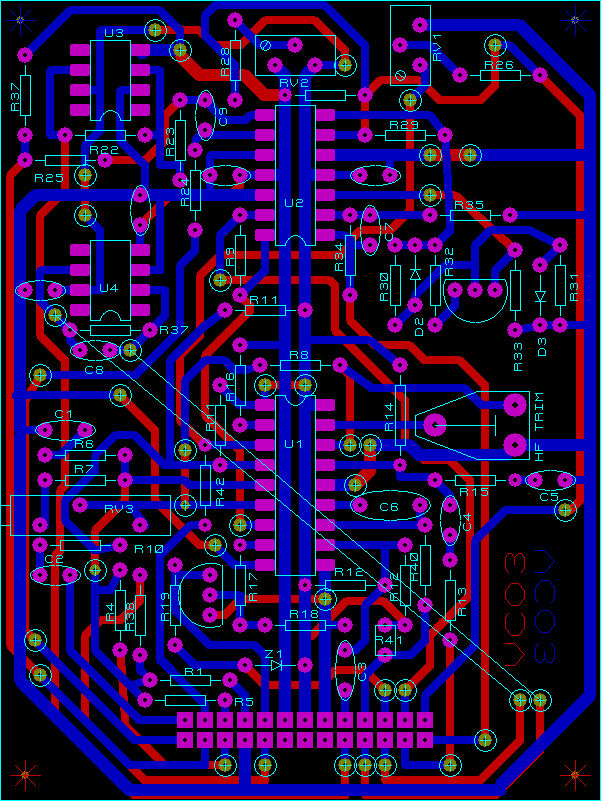

SSM 2033 VCO PCB 2x size
