Sample and Hold

Sample and Hold with internal rate oscillator.

• My design based on PMI SMP-10, LM398 could be substituted
• Manual pushbutton trigger
• LED indicates sample rate
• LM566 used for internal oscillator

Status

PCB built and stuffed PCB tested and working Wired to front panel and tested

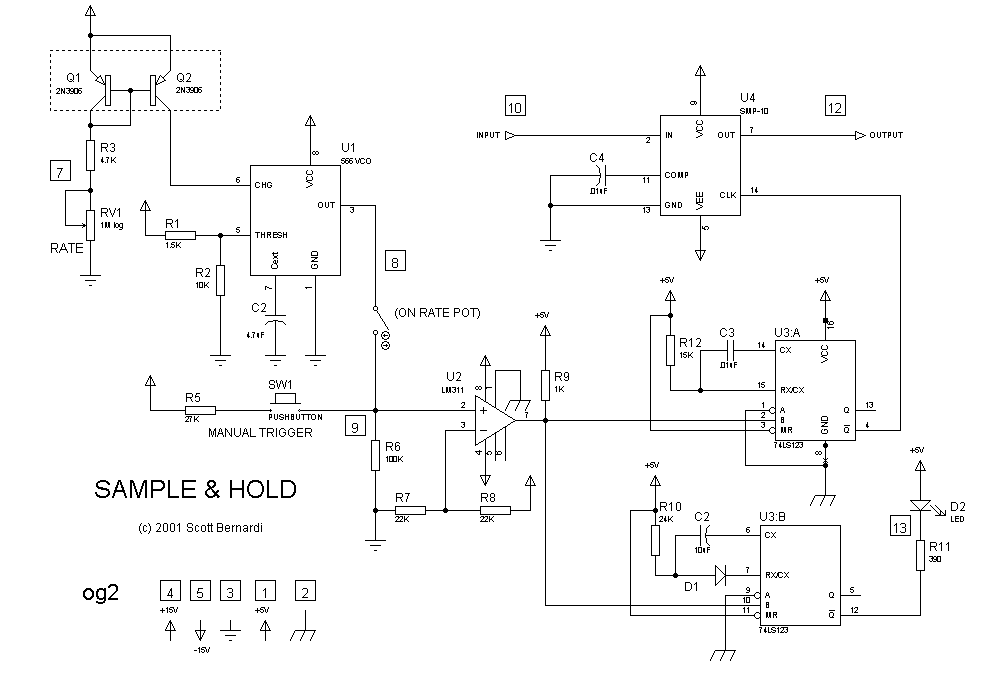

Sample and Hold schematic

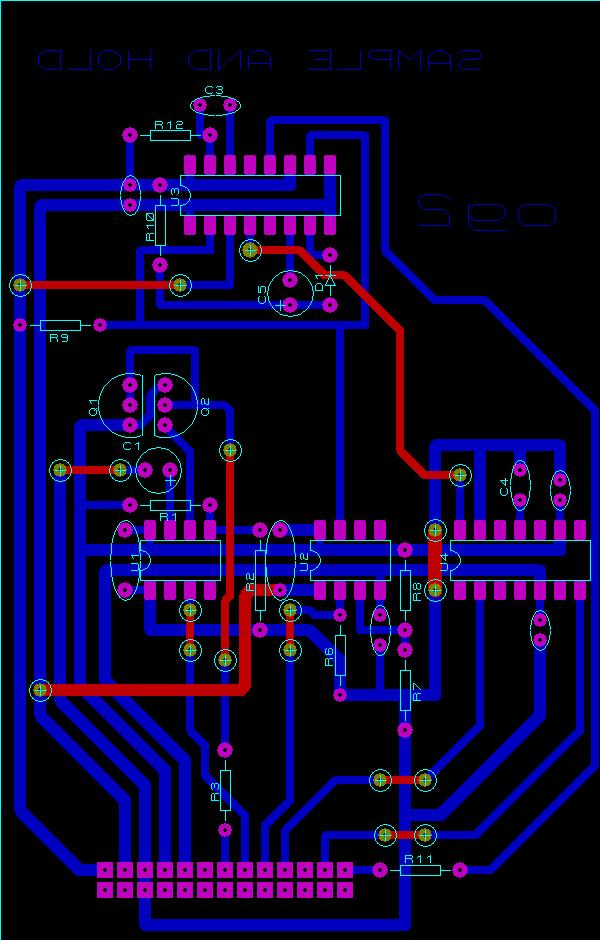

Sample and Hold PCB 2x size
