LFO

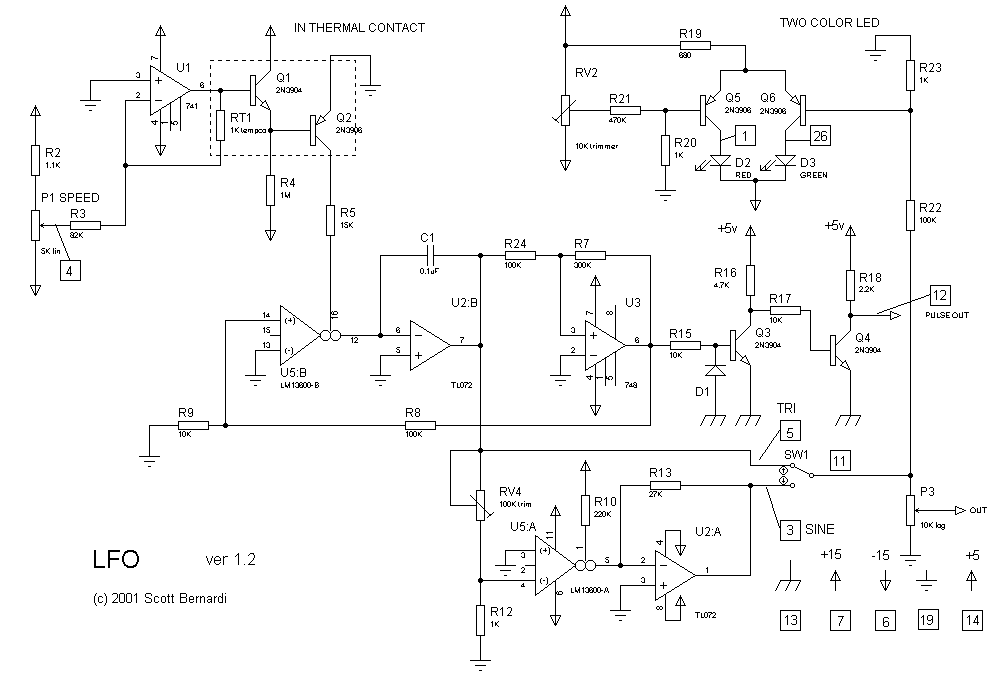

LFO with sine, tri, and TTL square outputs.

Exponential CV response. Range from 30 seconds/cycle to 200Hz.
RT1 tempco resistor optional.
Could add a CV input into U1 pin 2 for voltage control of speed.
Switch (labeled with sine and tri waveforms) selects waveform appearing at OUT jack.
Square output is TTL level (0-5v).
Bi-color LED shows polarity of output (green-yellow-red mix).
Output fed to hidden LM13600 VCA, which gets its control voltage from the MIDI Mod wheel.

Status

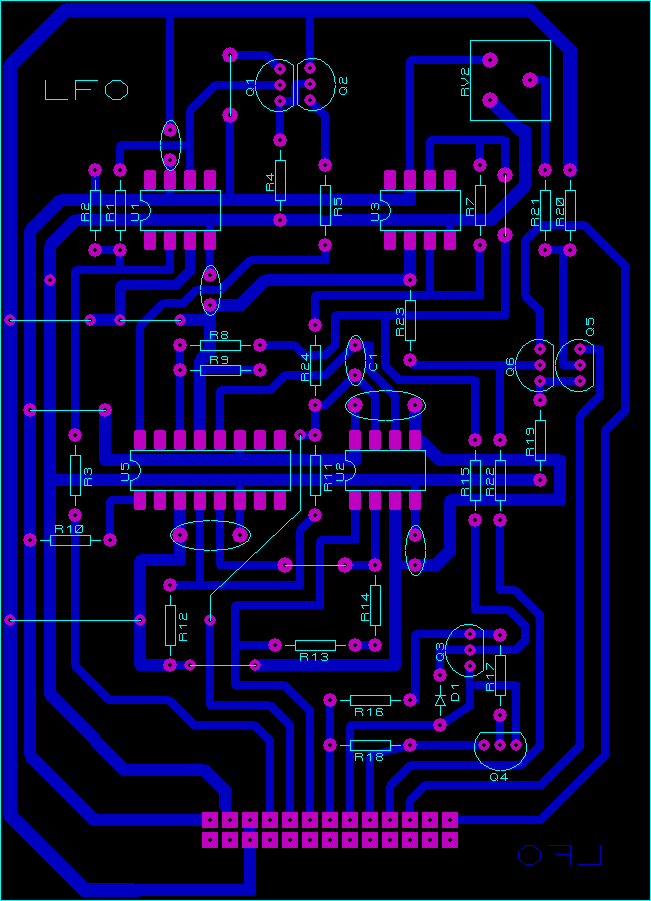

PCB built and stuffed
PCB tested and working
Wired to front panel and tested
