Dual Linear VCA

Dual VCA based on LM13600 OTA's.

Status
  • PCB built and stuffed
  • PCB tested and working

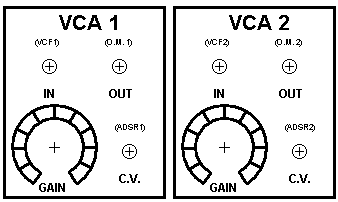

  • Wired to front panel and tested
    		•

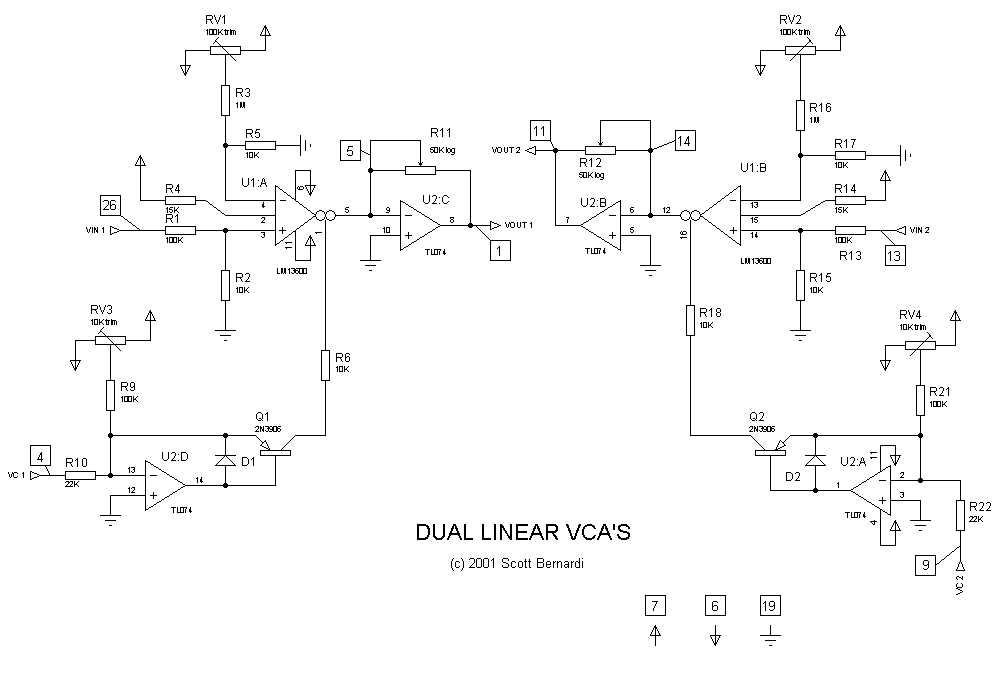

    Dual Linear VCA schematic

    Dual Linear VCA PCB 2x size

    ©2001 Scott Bernardi
