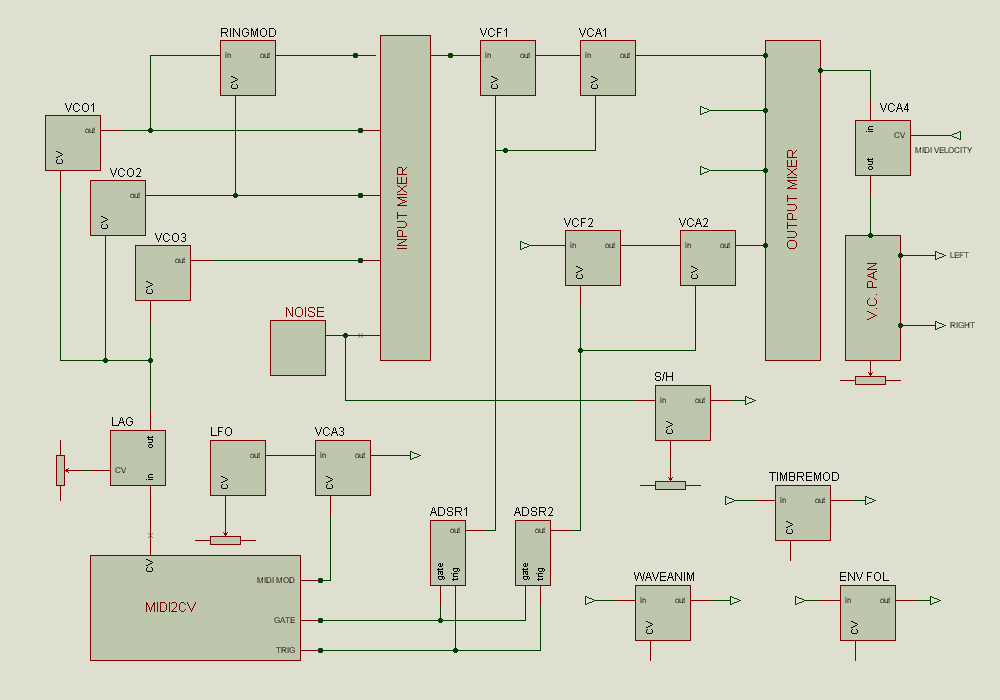

The diagram below shows the prewired patches. These are overridable by plugging a cord into appropriate jacks.
VCA3 and VCA4 are hidden modules with no front panel controls. VCA3 is controlled by MIDI MOD voltage, and is used to adjust the
amplitude ofthe LFO. VCA4 is controlled by MIDI Velocity voltage, and is used to implement touch sensitivity.
