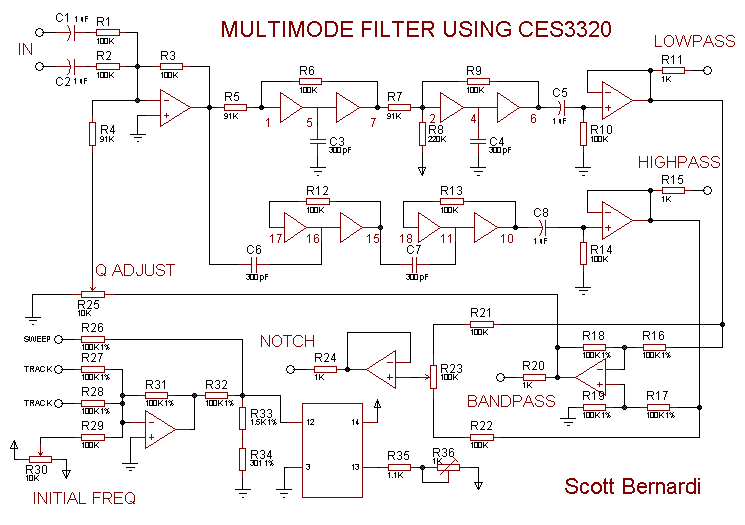

Multimode Filter using CES 3320

Features

  • Simultaneous Bandpass, Highpass, Lowpass and Notch outputs
  • Two tracking C.V. inputs, one sweep (inverted) C.V. input, Initial Frequency control
  • Adjustable Q
  • Notes

    Just about any opamps can be used.

    I used a 10 turn trimpot for R23 Notch trim. Feed a sinewave in, and adjust the Initial Frequency until you get the minimum amplitude out. Then adjust R23 until it goes through a minimum again.

    R36 is high frquency tracking adjust.
